Description

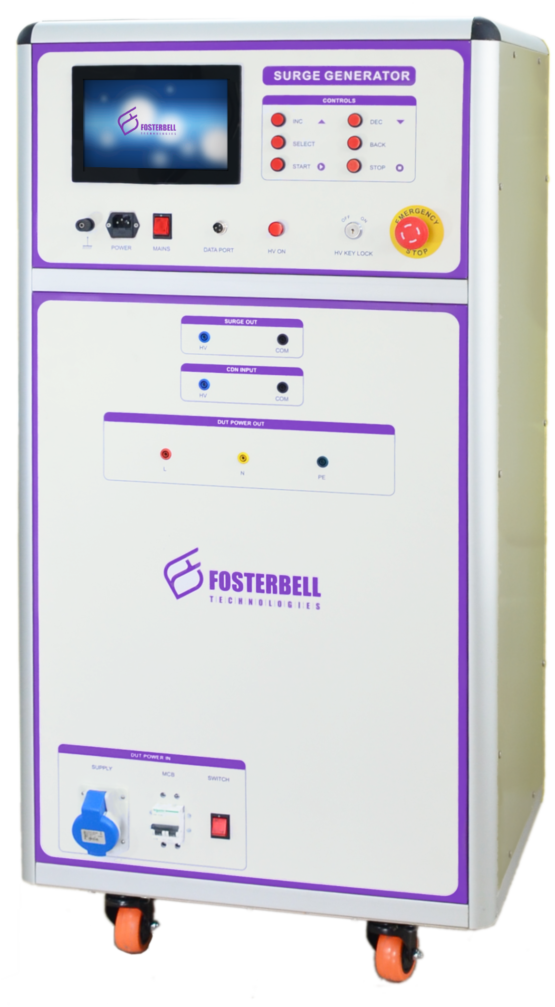

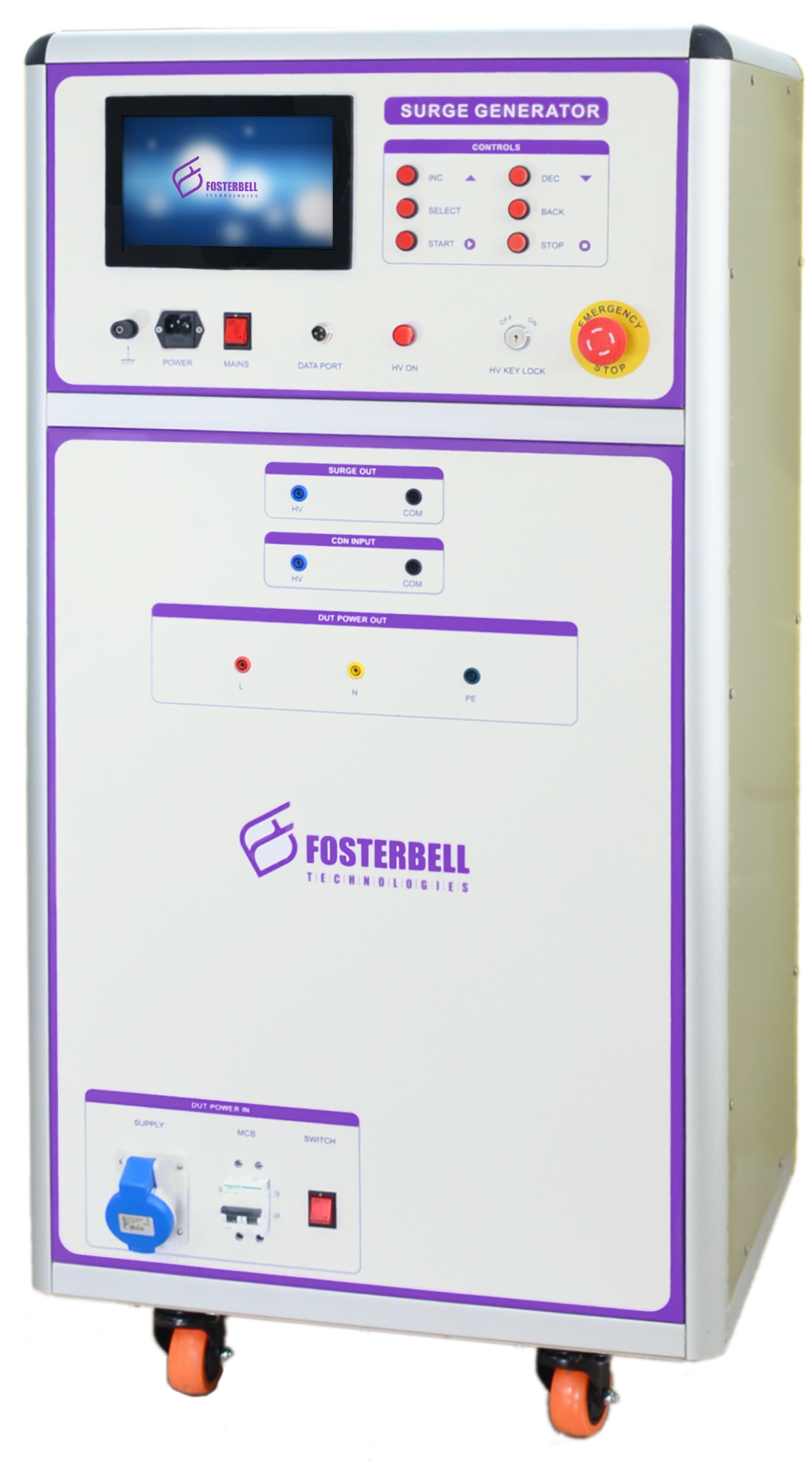

SG100C simulates surge as described by IEC 61000-4-5 standard.
It helps you to check surge immunity of DUT like LED Lights, Surge Protection Devices,
MOV, GDT and many more electrical appliances and circuit boards.
This machine is capable to generated surge upto 10000 volts and 5000 amperes
of current and capable to couple with inbuilt CDN upto 16 Amps or external CDN.
Surge Voltage Upto 10kV
Surge Current Upto 5kA
1.2/50 us – 8/20 us Waveform
Single Impulse Generator
Polarity (+ or -)
Coupling L-N, N-L, L-G, N-G
Phase angle (0-359 deg)
Output Impedance (2 or 12 Ohms)
Number of Surge (upto 9999)
Interval Duration (10 to 999 seconds)
Isolation Transformer 16Amp/230V
Voltage Regulator
